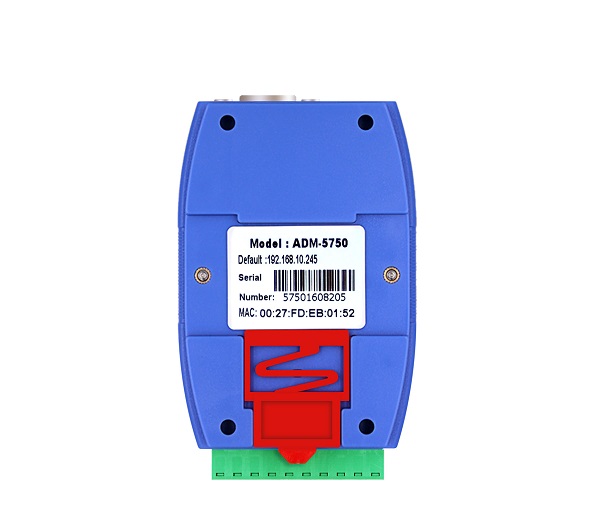

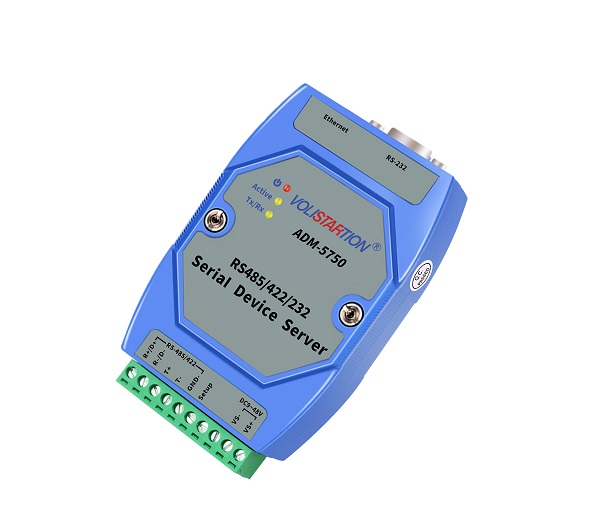

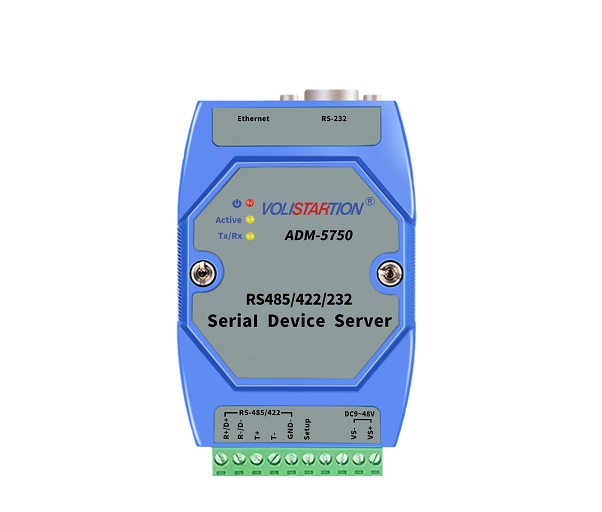

1-ch Serial device server

  • Model: ADM-5750
  • 1-Port 10/100M Ethernet ports
  • 1-Port RS-485/422/232
  • DIN-rail mounting ability
  • Product description: ADM-5000 family Serial Device Server can complete the function of RS-485/422 or RS-232 serial port convert to Ethernet TCP/IP. Support TCP Server, TCP Client, UDP protocol and virtual serial port func
  • INQUIRY

Product introduction

ADM-5000 family Serial Device Server can complete the function of RS-485/422 or RS-232 serial port convert to Ethernet TCP/IP. Support TCP Server, TCP Client, UDP protocol and virtual serial port functions. Provide VCOMM virtual com port software and SDS Configuration Serial Device Server configuration tool. Support the Web Server console and the Telnet console configuration mode. Industrial grade design proposal, RS-485/422 lightning protection design, high grade protection chip, can run in the harsh environment. Easy to use is also very flexible and reliable.

Features and Benefits

1. 1-Port 10/100MEthernet ports

2. Configure by telnet, web browser, or SDS configuration software

3. Standard TCP/IP protocols and choice of operation modes

4. Support TCP sever, TCP client, UDP, virtual COM modes

5. Support for the maximum 4 TCP connections

6. RS-485/422, RS-232 embedded 15KV ESD surge protection

7. Selection of35MMDIN guide rail

Product specification

Ethernet

Interface:  10/100Mbpsself-adaption Ethernet (RJ-45)

Protocols:  ARP, TCP, UDP, ICMP, TELNET, HTTP, DHCP, DNS

Communication:  full duplex / half duplex self-adaption

Operation mode:  TCP server, TCP client, UDP, Real Com mode

FIFO Memory:  receive 8K bytes and send 8K bytes

Transmission distance:  <100 meters Serial port Parity

Serial port

ADM-5750:  1-Port RS-485/422/232   ADM-5732:  2-Port RS-485/422

RS-232:  TXD, RXD, RTS, CTS, GND

RS-422:  T+, T-, R+, R-

RS-485:  D+, D-

Parity:  None\Even\Odd\space\mark

Data bits:  6bit, 7bit, 8bit

Baud rate:  300BPS to 230400bps

Flow control:  support RTS/CTS flow control or no flow control

Direction control:  RS-485 data flow direction control

Load capacity:  RS-485/422 maximum support 32 nodes

Transmission distance:  RS-485/422 (1000 meters), RS-232 (10 meters)

Interface protection:  1500W surge protection, 15KV ESD protection

Interface form:  RS-232 port DB-9 male, RS-485/422 terminal

Power Supply

Power input: DC9 to 48V (ADM-5732 is redundant dual power input)

Power consumption: 150mA@24V (Max)

Environment

Working temperature:-20 C~75 C

Storage temperature:-40 C~95 C

Ambient Relative Humidity 5 to 95% (non-condensing)

Appearance

Long x wide x high: 103x72x27 (mm)

Connection definition

10/100MEthernet port connection

The RJ45 port supports automatic MDI/MDI-X operations. In MDI, the pin 1, 2, 3, and 6 are defined as the connection pins as shown in the table.


Pins

MDI

MDI-X

1

TX+

RX+

2

TX-

RX-

3

RX+

TX+

6

RX-

TX-

4578


RS-485/422/232 serial port connection


Pins

RS-485

RS-422

RS-232

T+

T+

T-

T-

R+/D+

D+

R+

R-/D-

D-

R-

DB9-2

RXD

DB9-3

TXD

DB9-5

GND

Power Supply connection

ADM-5750 Power interface:  VS+, VS-

ADM-5732 Power interface:  PWR1 (VS1+, VS1-), PWR2 (VS2+, VS2-)

Restore the default settings

Hardware recovery:  Setup pin and GND pin short connection, the serial device server reboot, and then disconnect Setup and GND pin, restore the default setting success.

Software recovery:  Search the device through the SDC Configuration tool software and click to restore the default settings button.

LED instructions

ADM-5705

Power indication:   "PWR" bright red is the normal power supply

TCP connection success indication:   "Active" is bright green

Serial data sending and receiving indication:   P1"TX/RX" is Flash

ADM-5732

Power indication:   "PWR" bright red is the normal power supply

Serial Port 1 sending and receiving indication:   "P1" is Flash

Serial Port 2 sending and receiving indication:   "P2" is Flash

Simple application

1. Install SDS Configuration to the PC of the windows system

2. Connect the Serial device server and PC to the same LAN

3. Open SDS Configuration and search for Serial device server

4. The IP address of the Serial device server and the IP address of PC are in the same segment

5. The TCP/IP Mode is set to Real COM mode.

6. Open the installed VCOMM software, work in the TCP Client mode, and create a virtual serial port manually.

7. Complete, PC will add a COM port

Serial device server configuration

There are three ways to configure Serial Device Server, Telnet console and the Web console can be enabled and disabled by Web or Telnet.

1. IE browser is logon (the default IP address 192.168.10.245).

2. SDS Configuration tools

Run the installed SDS Configuration tool, click the search device button, the device list will display the serial device server that has been searched, the double-click list item can set the parameters, and finally save the settings.

3. Telnet console, (DOS system input "telnet 192.168.10.245").

Operation mode selection

1. TCP Server mode, you need to set the local port, and the remote device should work in the TCP Client mode.

2. TCP Client mode, you need to set the target IP address and target port, and the remote device should work in the TCP Server mode.

3. UDP mode, need to set the target IP address and target port, Serial device server is working in the two modes of Server and Client.

4. Real COM mode, virtual serial mode, PC should install VCOMM virtual serial port software, the data ports of Serial device server are 6020 (PORT1) and 6021 (PORT2)

VCOMM Serial Parameter Synchronization

The default of VCOMM Parameter Synchronization mode is SYNC TCP/IP .In the SYNC TCP/IP mode, VCOMM sends the serial parameter control command to the TCP port 6100 of the serial device server.

If the "Rich Packet" item of the serial device server is enabled, then the VCOMM parameter synchronization mode should be set to the Rich Packet mode. In the Rich Packet mode, each data frame sent to the serial device server by VCOMM contains serial port parameter commands.
