1FX+4FE Ethernet Swtich

  • Model: IDM-7152
  • 4-Port 10/100BaseT(X) (RJ45 connector)
  • 1-Port 100Base-FX fiber port
  • AC18~30V or DC9~36V Double redundant input
  • Product description: The IDM-7152 is entry-level industrial 5-port (1-port fiber and 4-port 10/100Mbps RJ-45) Ethernet switch
  • INQUIRY

Product introduction

The IDM-7152 is entry-level industrial 5-port (1-port fiber and 4-port 10/100Mbps RJ-45) Ethernet switch that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports.

The IDM-7152 switch is rated to operate at temperatures ranging from -20 to70 °C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting, AC24V or DC24V power supply, LED indicators make the plug-and-play IDM-7152 switches easy to use and reliable.

Product features

1-port 100Base-FX fiber port

4-port 10/100BaseT(X) RJ45 connector

IEEE802.3/802.3u/802.3x support

10/100Mbps auto negotiation

Supports full-duplex or half-duplex negotiation

AC18~30V or DC9~36V Double redundant input

DIN-rail mounting ability

Industrial Ethernet standard

Product specification

Standards:    IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T(X) & 100Base-FX

RJ45 Port:     4-ports 10/100Base-T(X), full/half-duplex, auto MDI/MDI-X

FiberPort:          1-port 100Base-FX (with optional SC, ST, FC)

Bandwidth:                         1.6G

MAC table size:                         2 K

LED indication:       PWR1, PWR2, FX port Link/Act, RJ-45 port Link/Act

Fiber mode:               Multi-mode 50/125, 62.5/125μm

Single-mode 9/125, 10/125μm

Fiber Trans distance:   Multi-mode:2 KmSingle-mode:20 Km

Voltage input:      AC18~30V or DC9~36V Double redundant input

120mA @ 24V (Max)

Installation:                    35mmDIN-Rail

Dimension (W x H x D):       115×50×78 (mm)

Operating temperature:         -20 ~70

Storage temperature:           -40 85

Relative humidity:         5~95% (non-condensing)

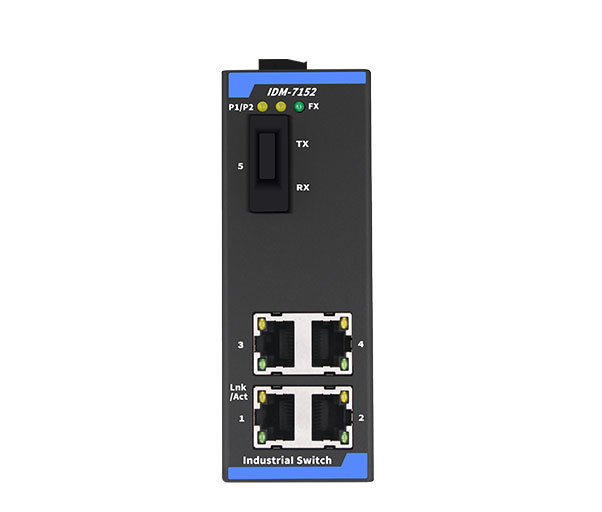

Interface definition

Power

VS+: Power positive, VS-: Power negative

Ethernet

1,2,3,4

Fiber

5

LED

PWR1, PWR2, P1~P4, FX Link/Act

Model definition

IDM-7152-SC    Double fiber SC interface, single mode fiber and multimode fiber

IDM-7152-FC     Double fiber FC interface, single mode fiber and multimode fiber

IDM-7152-ST     Double fiber ST interface, single mode fiber and multimode fiber

IDM-7152-SC1    Single fiber SC interface, only using single-mode fiber

IDM-7152-FC1    Single fiber FC interface, only using single-mode fiber

IDM-7152-ST1    Single fiber ST interface, only using single-mode fiber

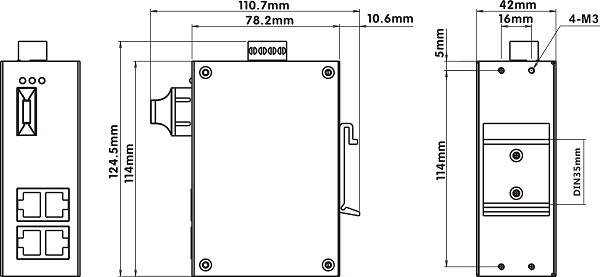

Dimensions
